The JTL Wawi (API) integration connects your on-premise or hosted JTL-Wawi instance to Chatarmin CX so agents and AI Agents can look up orders, tracking, and—where you allow it—update addresses or cancel orders.
This guide is for JTL-Wawi ERP with the REST API. It is not the same as FFN Connect / Fly, which syncs Shopify to a fulfillment warehouse.

​
When to use it

Use JTL Wawi (API) when:
  • Orders and customers live in JTL-Wawi (common in DACH)
  • Support needs WISMO, address changes, cancellations, or order context from Wawi
  • You want AI Agents to read or write Wawi data with approval on sensitive actions

​
Prerequisites

Before you connect in cx, confirm on the JTL side:
  • JTL-Wawi REST API service is running — in JTL-Wawi Administrator, the API / app-registration service for external apps is started.
  • You know the database segment in the API URL — this is the name after /api/ in the server URL (for example eazybusiness). It is the database name, not necessarily the Windows service display name.
  • A JTL-Wawi user exists for the connection — you enter this username in cx after approving the app in Wawi.
  • Your API port is reachable from the public internet — Chatarmin CX calls your Wawi server from the cloud. The port is set in JTL (often 5883, but customers also use 5679, 50443, and others). Private LAN addresses (for example 192.168.x.x) do not work.

​
Server URL format

In cx, use the full base URL of the Wawi REST API:
Examples (same database name, different ports — use the port your administrator configured):
  • https://wawi.example.com:5883/api/eazybusiness
  • https://203.0.113.10:5679/api/eazybusiness
Use your public hostname or public IP, not an internal VM or Proxmox LAN address. The segment after /api/ is the JTL database name (often eazybusiness), not your shop or Windows service name. If Wawi has no TLS certificate stored, try http:// instead of https:// in the URL.
5883 is the common default API port. Connected Chatarmin accounts use customer-specific ports — always copy the host, port, and database from your JTL administrator, not from another shop.

​
Network and firewall

Chatarmin CX must be able to open an inbound TCP connection on your Wawi API port (the same port in the server URL). Configure all layers that apply:
  1. Windows Firewall on the Wawi server — allow inbound TCP on the API port for the Wawi service. Include the Public profile if the server is reached from outside the LAN.
  2. Hypervisor / datacenter firewall (for example Proxmox) — allow the same port on the VM; default deny rules block cx even when Windows allows the port.
  3. Hosting provider edge firewall — if Wawi runs at a hoster, ask them to allow inbound traffic on your API port to your VM’s public IP.
Allow outbound-initiated connections from Chatarmin CX (our servers connect to you; you do not whitelist a callback URL). For the current outbound IP allowlist, contact your Chatarmin CX onboarding or support contact — do not guess IPs from old tickets. Quick check from outside your office network:
A JSON response or HTTP 401/403 means the port is reachable; timeout means firewall, wrong host, or the API service is not listening.

​
Set up JTL Wawi (API)

​
Start the JTL-Wawi REST API

Before you connect in cx, start the JTL-Wawi API on your server and make it reachable on a public hostname or IP (see Network and firewall above). JTL publishes a setup guide for the REST server: Start the JTL-Wawi API REST server.

​
Connect in Chatarmin CX

1

Open integrations

Open integrations and choose JTL Wawi (API).
2

Enter the server URL

Click Add account. Enter an integration name and your server URL (for example https://wawi.example.com:5883/api/eazybusiness). Do not click Connect yet — complete the JTL app registration wizard on the Wawi PC first (next section).
3

Finish in cx

After you approve the app in JTL-Wawi, return to cx, enter the JTL-Wawi username you chose in the wizard (we recommend chatarmin/v1), and click Finish Setup. The account should appear under connected integrations.

​
Register the app in JTL-Wawi (before Connect)

Reach the waiting for registration request screen in JTL-Wawi before you click Connect in cx. If you click Connect first while the wizard is not listening, JTL never receives the request and the flow looks stuck.
On the Wawi server PC:

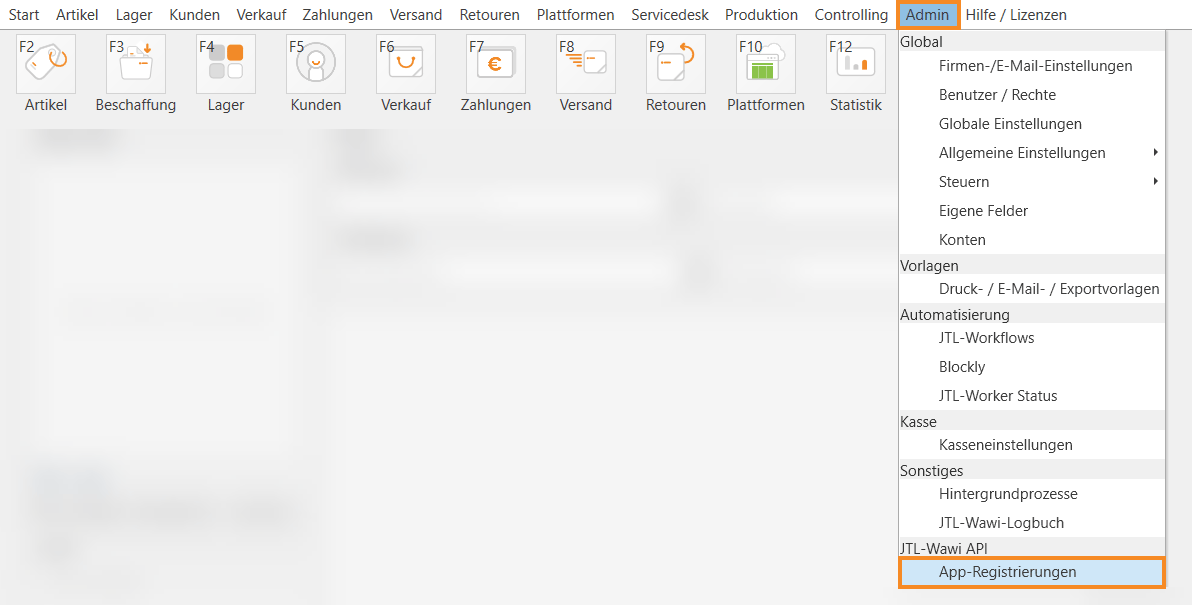

  1. Open JTL-Wawi and go to Admin → JTL-Wawi API → App Registration (App-Registrierungen).
JTL-Wawi menu Admin to JTL-Wawi API App Registration

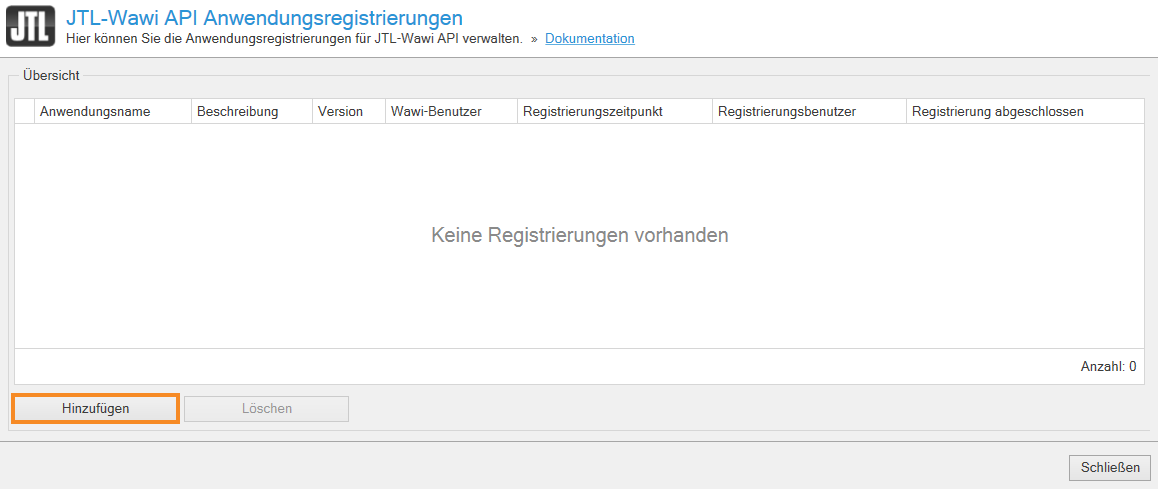

  1. Click Add (Hinzufügen). The registration wizard opens.
JTL-Wawi API application registrations list with Add button

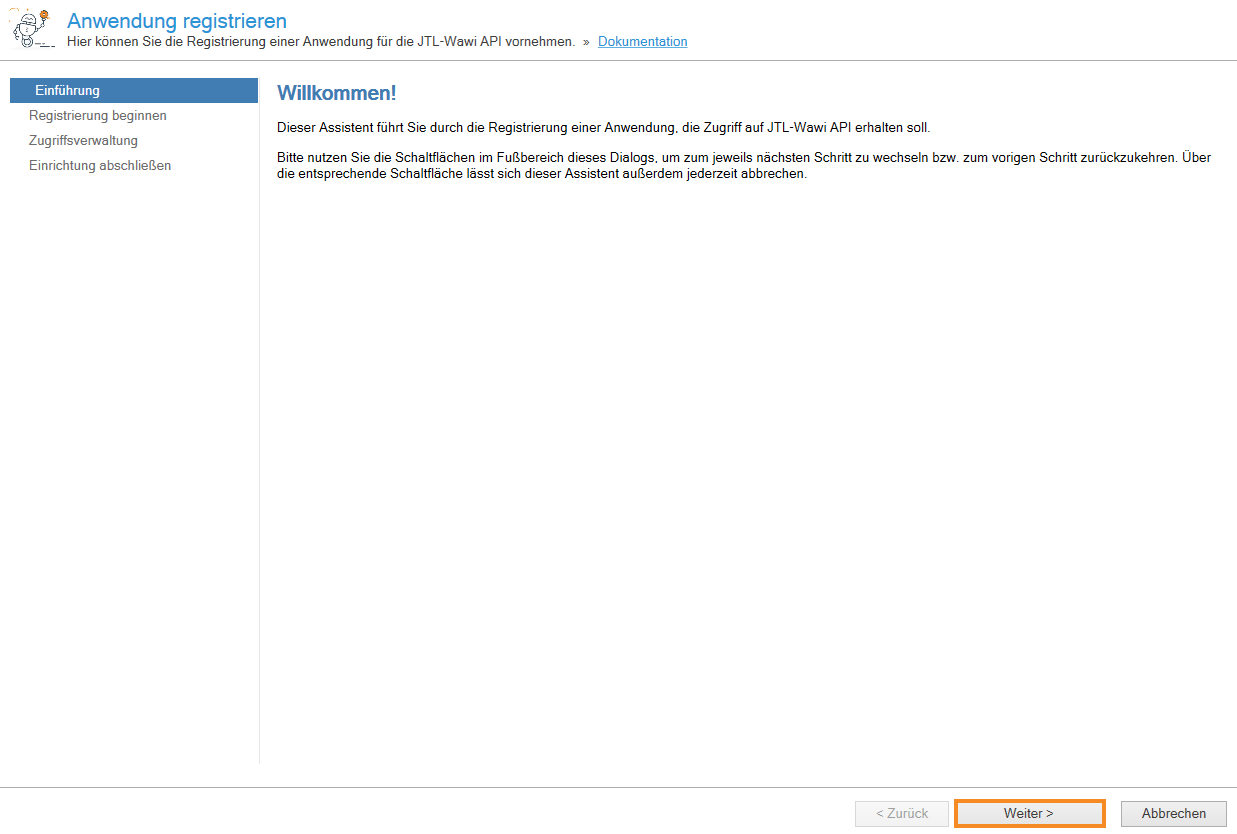

  1. On the introduction page, click Next (Weiter).
JTL-Wawi app registration wizard introduction step

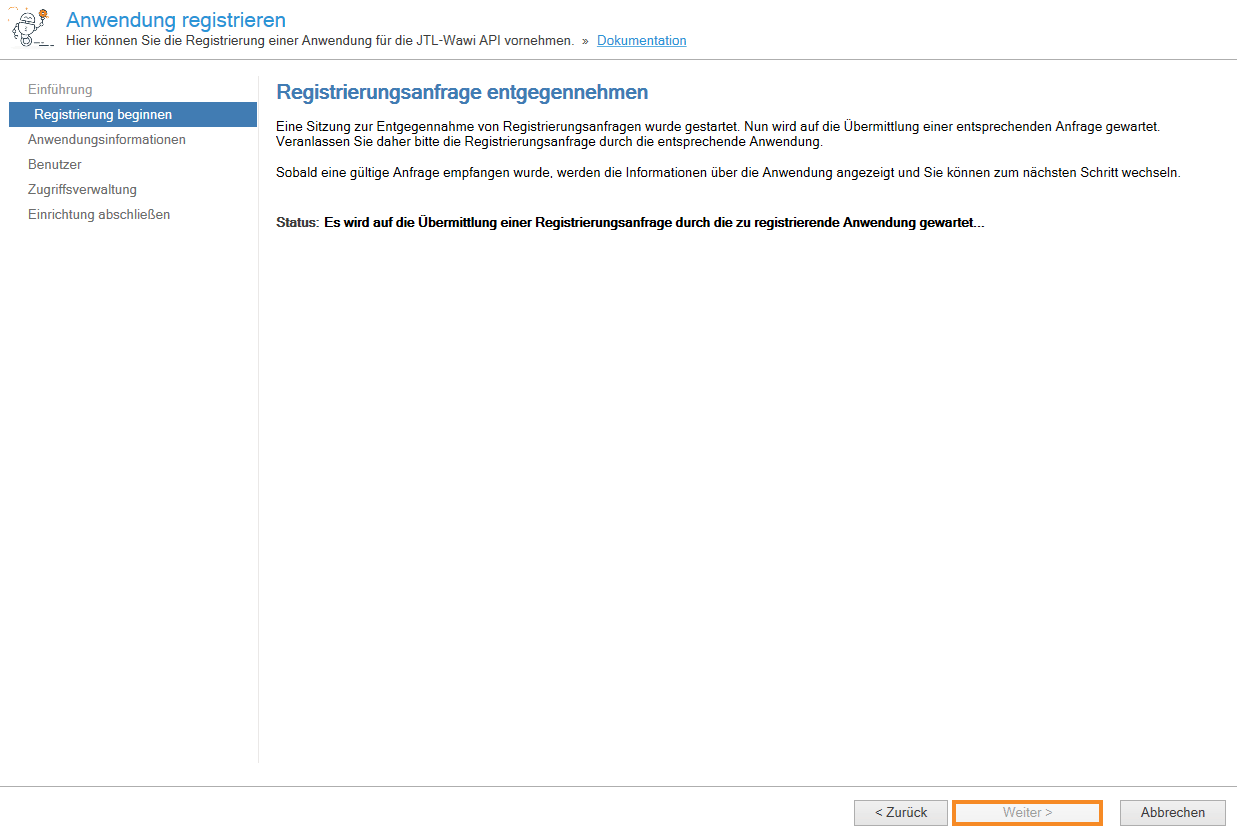

  1. On Start registration (Registrierung beginnen), JTL-Wawi waits for a registration request from cx. Leave this screen open. The status should say it is waiting for the application to send a request — Next stays disabled until then.
JTL-Wawi waiting for registration request from external app

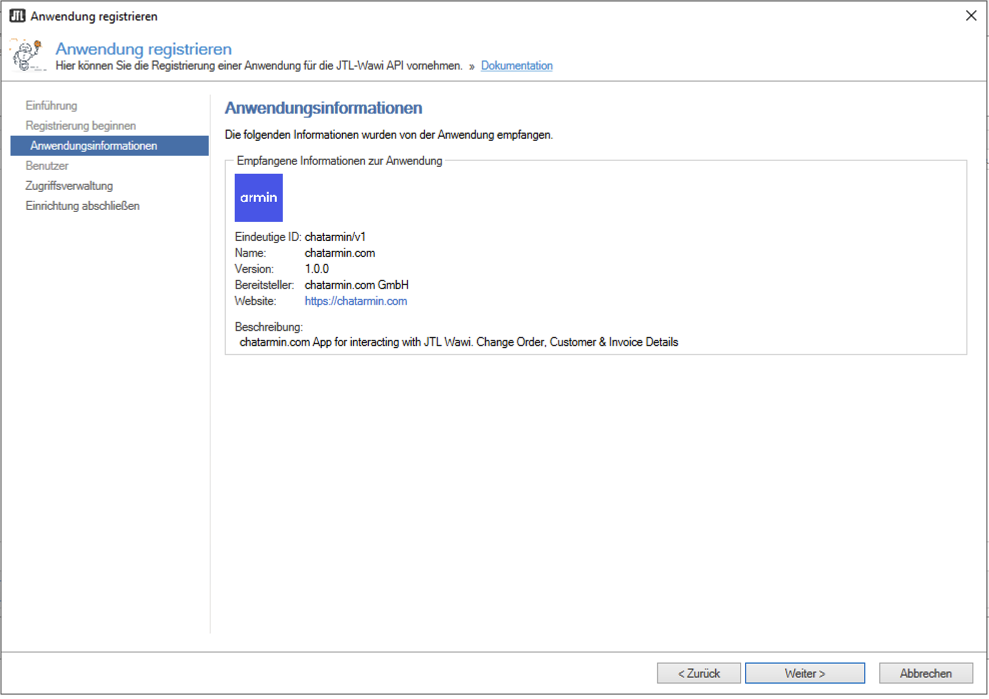

  1. Back in cx, click Connect. JTL-Wawi should show application details for chatarmin/v1 / chatarmin.com (chatarmin.com GmbH).
JTL-Wawi received application information for chatarmin/v1
  1. In JTL-Wawi, click Next, set the API username (recommended: chatarmin/v1), click Next through access management, and finish the wizard.
  2. In cx, enter the same username and click Finish Setup.

​
Use JTL Wawi in the inbox

When a ticket contact matches a Wawi customer, order context can appear in the ticket sidebar. Agents see order details without switching to Wawi.

​
AI Agent actions

JTL Wawi actions can let AI Agents:
  • get an order
  • get tracking information
  • update a shipping address
  • update custom fields or delivery dates
  • cancel an order (with cancellation reason where configured)
Keep write actions on approval until test runs match your warehouse rules. Existing workflows can still use JTL actions for fixed legacy flows.

​
Best practices

  • Use the database name in the URL path; wrong paths cause connection or auth failures that look like generic errors.
  • Document your public URL and firewall rules with whoever manages Proxmox or hosting — cx cannot fix datacenter firewall from the product.
  • Prefer HTTPS once a certificate is stored in Wawi; use HTTP only when Wawi serves the API without TLS.

​
Troubleshooting

For REST field reference after the connection works, see the JTL Wawi API documentation (vendor reference).
